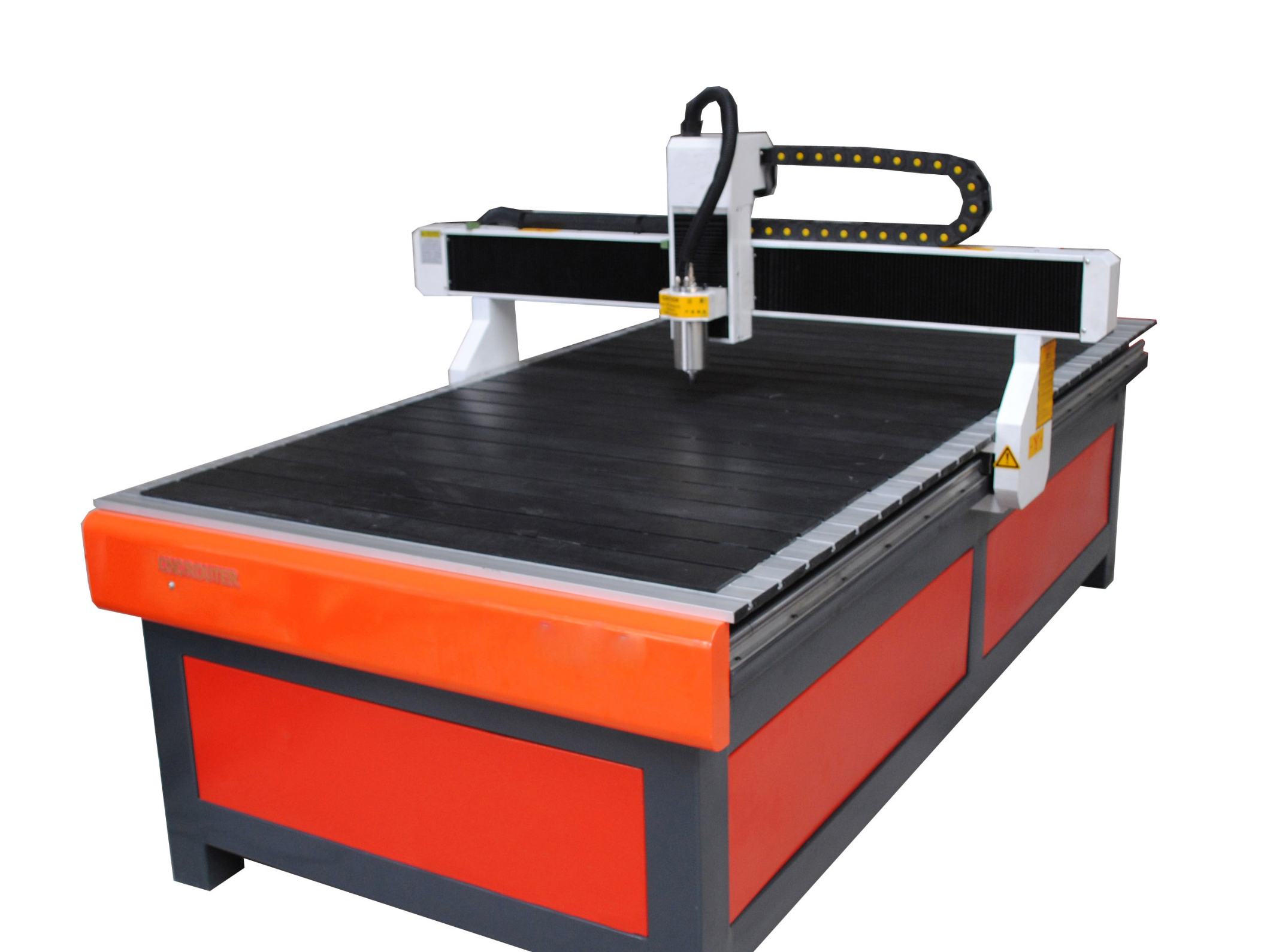

Ball screw CNC Router Machine GS-1224

inquiry

SPECIFICATION

WORKING   AREA

1200mm×2400mmx150mm

REPEATABILITY

0.01mm

SPINDLE POWER

2.2KW(Water Cooling)

GUIDE WAY

LINEAR(HIWIN)

ROUTER BITS DIAMETER

Φ3.175 Φ6Φ8

POWER

AC220V/50HZ

MOVING   SPEED

15m/min

WORKING   SPEED

12m/min

TRANSMISSION

BALL SCREW

Spindle   rotating speed

24000rpm

Command

G code*.u00*.mmg*plt

CONTROLLER

Ncworks

MOTOR

STEP MOTOR

ACCESSORY

DUST COLLECTOR

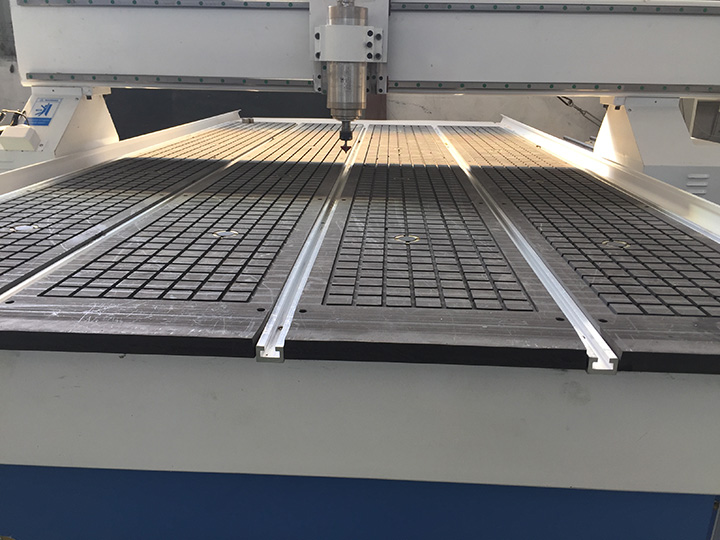

Vacuum & T-slot Table for Rotary CNC Router Machine

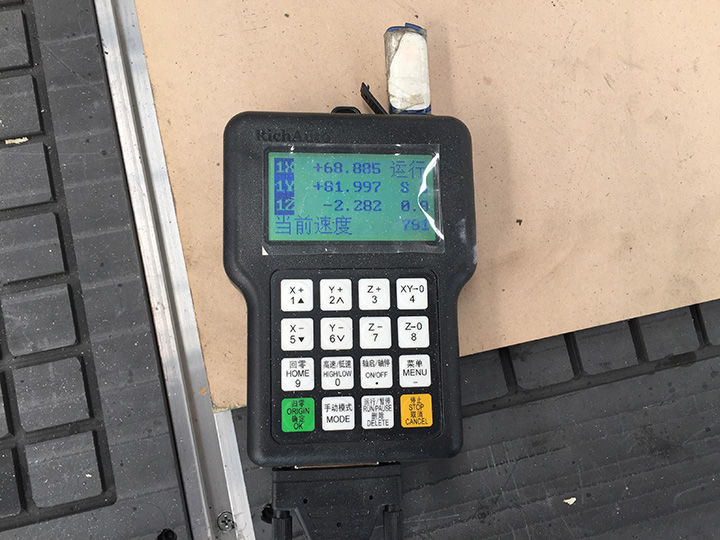

DSP Controller of Rotary CNC Router Machine:

The machine is controlled by the DSP handheld controller, which ensures that the machine can be operated without a computer. It supports 3 axis, 4 axis function and multi spindles.

DSP Controller of CNC Router Machine

4th Rotary Axis CNC Router Projects

CNC Router Machine Projects
